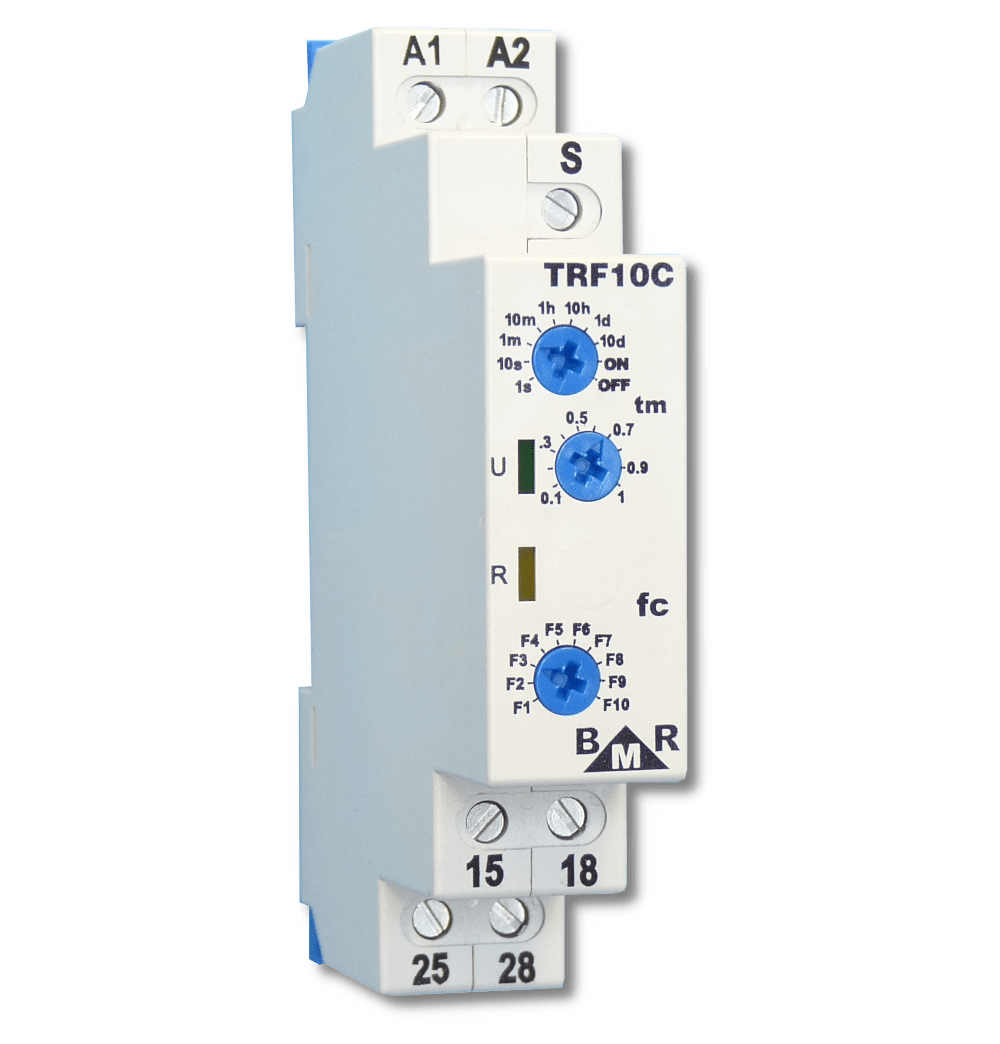

Multifunction time relay TRF10C
Digital multifunction time relays for wide range of industrial and domestic applications equipped with 10 most often functions and 2 output NO contacts 8 A. Precise design, quality and long working life assures reliable work in any application without failure and maintenance need.
- multfunction timer with 10 functions
- timing from 0.1 s till 10 days
- universal supply from 12 VAC/DC till 230 VAC
- 2 x output relay NO contact 8 A
- function permanent On or permanent OFF
- small dimension 1-DIN rail module
- relay status LED signalization
Function
The time relay function is selected using the fc trimmer. Depending on the selected function, the device counts from 0.1 s to 10 days. Some of the functions use input S, whose value is defined against input A1. The relay also allows you to set the function permanently ON, when the output relay is permanently switched on, or permanently OFF, when the output relay is permanently switched off.
Technical features
| Parameter | Value |
|---|---|
| supply voltage range | 12 VAC/DC ... 230 VAC |
| self consumption | max. 1.5 VA |
| number of functions | 10 |
| adjustable time range | 0.1 s ... 10 days |
| number and type of output contacts | 2 x NO |
| nominal current of output contact | 8 A |
| switching power | max. AC 2000 VA |
| trigger current | 30 A |
| nominal / max switching voltage | 250 VAC / 440 VAC |
| mechanical lifetime | 3 x 106 |
| electrical lifetime | 1 x 104 250 VAC, 8A |
| ambient temperature | -20 ... +55 °C |
| working position | any |
| mounting | IEC 60715 (DIN 35) |
| protection degree | IP 20 |
| I/O insulation | 4 kV |
| maximum input wire diameter | max. 2 x 1.5 mm2; 1 x 2.5 mm2 |
| weight | 85 g |
| dimensions | 90 x 18 x 65 mm |
| related norms | IEC 60255-1 |
